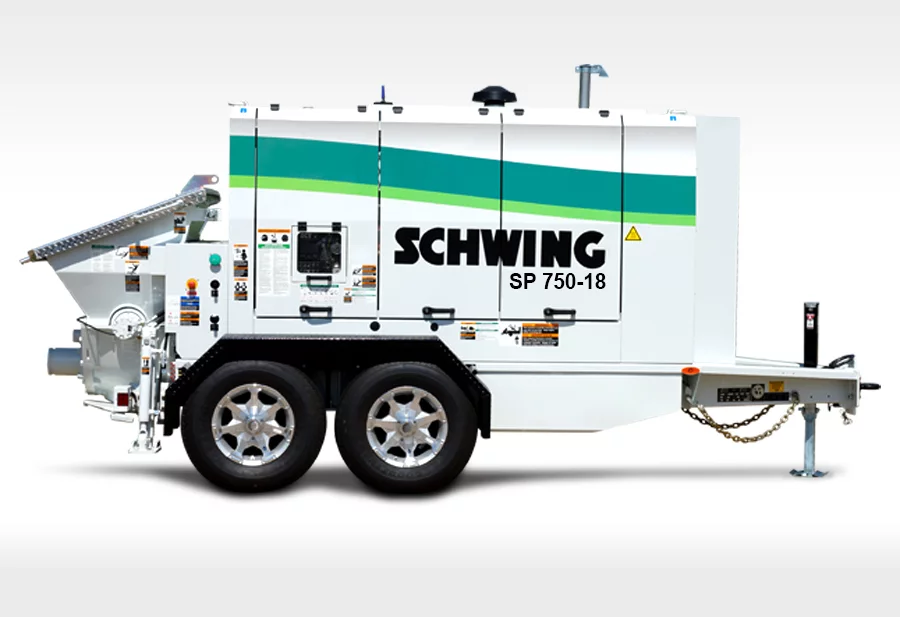

SP 750-18

Concrete output max.:70 cu yds
Pressure on concrete max.:1100 psi
Engine output:115 hp
Machine weight:8850 lbs.

SPECIFICATIONS
	U.S.	Metric
Concrete Output Per Hour	70 cu yds	53.5 cu m
Maximum Pressure on Concrete	1100 psi	75.8 bar
Maximum Aggregate Size	1.5 in	38.1 mm
Concrete Cylinder Diameter	7 in	180 mm
Concrete Cylinder Stroke Length	39 in	1000 mm
Differential Piston/Rod Diameter	3.5/ 1.96 in	90/ 50 mm
Outlet Diameter	5 in	125 mm
Concrete Valve Type	Long Rock™
Shifting Cylinders	2
Max. Pump Strokes Per Minute	35
Volume Control	0 to Maximum
Hydraulic System	Open Loop
Main Hydraulic Pump	A11VO130
Hydraulic Pressure	4350 psi	300 bar
Hydraulic Tank Capacity	112 gal	424 l
Engine Model – Diesel Tier 4 F	CAT® C3.6 Stage V
Engine Power	100 hp	75 kw
Fuel Tank Capacity	39 gal	147 l
Hopper Capacity	13 cu ft	.38 cu m
Hopper-Height	51 in	1292 mm
Axle	Tandem Standard
Axle Capacity Rating	11000 lbs	4990 kg
Tandem Axle Tires	ST 235/80 R16 (std.)
Brakes	Electric
Outrigger Legs	Manual Standard
Length	200 in	4840 mm
Width	76 in	1835 mm
Height	102 in	2590 mm
Unit Weight (Tier 4)	8850 lbs	4014 kg
Dual Weight	N/A	N/A
Remote Control Cable	100 ft	30.5 m
*Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice
